My Lister Junior B tank cooled

Go down

My Lister Junior B tank cooled Empty My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 11:30

Hi Guys this is what I've been up to the last few months.
A bit of background, I am from South Africa and vintage engines of any sort are very difficult to come by and spares even more so.

I recently acquired these two little "ladies" in very rough condition. Decided to start stripping and cleaning both at the same time. I needed a engine for a restoration competition, so with my Lister Junior model B tank cooled being more complete I would use that one.

My Lister Junior B tank cooled 20151112

After doing some research I discovered that these two Listers came from the Kalahari desert (hence the rough shape)
So here are some pics of the disassembly:

My Lister Junior B tank cooled 20151113

A 1950 I take it?

My Lister Junior B tank cooled 20151114

My Lister Junior B tank cooled 20151115

My Lister Junior B tank cooled 20151116

My Lister Junior B tank cooled 20151117

My Lister Junior B tank cooled 20151118

My Lister Junior B tank cooled 20151119

My Lister Junior B tank cooled 20151120

So I have stripped both motors entirely and sorted out the parts on a Table.
Let the cleaning commence..... a lot of it!

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 11:47

So after two weeks of cleaning. I started making up new parts and prepping everything to be painted.

My Lister Junior B tank cooled 20151121

My Lister Junior B tank cooled 20151122

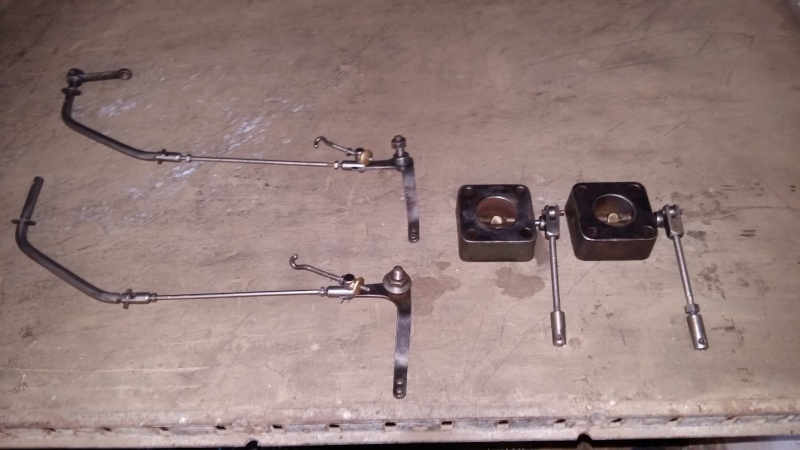

My Lister Junior B tank cooled 20151123

My Lister Junior B tank cooled 20151210

Then by chance when I was looking for spares for my waterpump came across some lister parts and got two pulleys and a good condition piston arm including the berings.

My Lister Junior B tank cooled 20151211

My Lister Junior B tank cooled 20151212

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 12:25

I dont have any fancy paints available near where I live, so I use what I can get. Sure it will do the Job.

My Lister Junior B tank cooled 20151213

My Lister Junior B tank cooled 20160110

My Lister Junior B tank cooled 20160111

My Lister Junior B tank cooled 20160112

My Lister Junior B tank cooled 20160113

My Lister Junior B tank cooled 20160114

My Lister Junior B tank cooled 20160115

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 12:36

So the agenda in the new year was to build a new fuel Tank. Made out of stainless steel, used as much of the old fittings as possible.

My Lister Junior B tank cooled 20160116

My Lister Junior B tank cooled 20160117

My Lister Junior B tank cooled Img-2010

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 12:47

I found an old oil drum which will be perfect as a Water Tank. made some holes put on some fittings came out real nice.
Got some water transfers from England. Took three weeks to get here.

My Lister Junior B tank cooled 20160118

My Lister Junior B tank cooled 20160119

My Lister Junior B tank cooled 20160120

My Lister Junior B tank cooled 20160121

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 13:06

Started to assemble everything. Amazing how much quicker it takes to put everything back together.

My Lister Junior B tank cooled 20160122

My Lister Junior B tank cooled 20160123

My Lister Junior B tank cooled 20160124

My Lister Junior B tank cooled 20160125

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 13:17

Found a pair of original Lister mufflers at my Uncles farm 80km. Cleaned the one and painted it with heat resistant paint.

My Lister Junior B tank cooled 20160126

My Lister Junior B tank cooled 20160127

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 13:37

Ive decided to go with a wheelbarrow type base. Got some cast wheels that I had lying around, found some good timber and let my mind fly away with ideas.

My Lister Junior B tank cooled 20160128

My Lister Junior B tank cooled 20160129

My Lister Junior B tank cooled 20160130

My Lister Junior B tank cooled 20160131

My Lister Junior B tank cooled 20160132

My Lister Junior B tank cooled 20160133

My Lister Junior B tank cooled 20160134


Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sat Jan 23 2016, 13:51

Im getting to the final stages, waiting for hoses and clamps from Johannesburg. I put on the final transfers and will be ready to start up soon.

My Lister Junior B tank cooled 20160135

My Lister Junior B tank cooled 20160136

My Lister Junior B tank cooled 20160137

My Lister Junior B tank cooled 20160138

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by rich07961 on Sat Jan 23 2016, 22:20

Well you have been busy and looking good , I do like the way you have supported the tank, cracking job well done. Regards Richard

_________________
Success is the ability to go from one failure to the next without any loss of enthusiasm  Very Happy
rich07961
rich07961
A credit to the forum
A credit to the forum

Posts : 286
Join date : 2015-03-30
Age : 67
Location : Calne Wilts

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Sun Jan 24 2016, 08:08

Thanks Richard,

Im hoping that it does well in our national competition

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by mayog on Fri Mar 04 2016, 11:49

Very Very nice

mayog
Born to be wild
Born to be wild

Posts : 45
Join date : 2016-02-19

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Mark15 user on Fri Mar 04 2016, 16:14

Nice job,

Keep up the good work cheers
Mark15 user
Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 108
Join date : 2014-09-06
Age : 49
Location : Holland

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Woodsman on Thu Mar 10 2016, 10:40

Nice one Well done.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 917
Join date : 2014-08-24
Location : God's own county

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by gdamman on Thu Mar 10 2016, 12:40

that looks awesome, very well don
gdamman
gdamman
Born to be wild
Born to be wild

Posts : 16
Join date : 2016-02-09
Age : 42
Location : Ohio

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by StewartH on Wed Mar 16 2016, 12:03

What a cracking restoration - a great read and quite inspirational mate! - let us know how you get on in the local rally scene - its a first prize in my eyes!

best wishes and keep it coming!

Hamish
StewartH
StewartH
A credit to the forum
A credit to the forum

Posts : 414
Join date : 2013-07-04
Location : Hampshire

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by tony RA on Wed Mar 16 2016, 22:01

Now that is a nice job I like it nice trolley to Well done

tony RA
A credit to the forum
A credit to the forum

Posts : 175
Join date : 2013-11-16
Age : 72
Location : newtown powys

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Wed May 25 2016, 08:09

Thank you guys!

Well I have taken my Junior to a Little meet where it did quite well I guess.
scored an 86/100.

I have found some more original parts in real good condition that ill be changing to gain those extra points.
Unfortunately being freshly restored the governor wasn't functioning 100% as it was catching so lost some stupid points there.

Ill be aiming for a 90-95% for the regional and then really pull out all the stops to get as close to 100% for the Nationals end of the year.

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Wed May 25 2016, 08:46

My Lister B at the Judging Meet

My Lister Junior B tank cooled 20160212

My Lister Junior B tank cooled 20160211

Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Wed May 25 2016, 09:15


Farmenginerd
Born to be wild
Born to be wild

Posts : 24
Join date : 2015-11-15
Location : South Africa

Back to top Go down

My Lister Junior B tank cooled Empty Re: My Lister Junior B tank cooled

Post by Farmenginerd on Thu Nov 24 2016, 12:25

Sorry with the delay, been very busy.
My little Lister qualified for the national EERC out of 41 entrants around South Africa where it competed against the top 12.
I am happy to report that I came 4th, am very happy as all the engines that qualified were of top quality restoration.
The winning engine was a Deutz 914 Diesel.
Here are a couple of pictures from the event.
My Lister Junior B tank cooled Img-2011
My Lister Junior B tank cooled Img-2015
My Lister Junior B tank cooled Img-2012
My Lister Junior B tank cooled Img-2014
My Lister Junior B tank cooled Img-2013
My Lister Junior B tank cooled Img-2010
My Lister Junior B tank cooled Img-2016
