Villiers - The V Engine.

+3
Woodsman
B10Dave
rich07961
7 posters

Page 1 of 2 1, 2  Next

Go down

Villiers - The V Engine. Empty Villiers - The V Engine.

Post by Woodsman Thu Jul 23 2015, 10:06

Started dismantling our latest engine and discovered a small pull operated lever on the rear of the magneto back plate. Can't see where it should pivot or what it should be attached to. Can anyone shed any light? Also, does anyone have a manual / parts list?

Villiers - The V Engine. 20150722_162149_zpssrzmicjc

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Thu Jul 23 2015, 16:56

Ah, just had another look. Could it be a massively over-engineered 'kill switch' to earth the LT side of the coil?


Last edited by Woodsman on Fri Jul 24 2015, 21:04; edited 1 time in total

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by rich07961 Fri Jul 24 2015, 17:14

Hi Paul,

Exactly as you described


Regards

Richard

_________________
Success is the ability to go from one failure to the next without any loss of enthusiasm  Very Happy
rich07961
rich07961
A credit to the forum
A credit to the forum

Posts : 287
Join date : 2015-03-30
Age : 72
Location : Calne Wilts

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Mon Jul 27 2015, 10:54

More dismantling of our Villiers V engine. Looks like someone has had a go and then given up. The gasket between the carburettor was torn and some numpty had used liquid gasket to fix - thereby blocking all the little orifices!! Having got everything soaking in thinners we had a look in the float bowl. Pretty gungy at the bottom but that will clean. However we'd like some advice on the float/needle arrangement. It looks like the needle, which passes through the float, is loose and was held in place by a couple of spring wires locating in a groove in the needle.
Obviously the wires have disintegrated.

Villiers - The V Engine. 20150726_145635_zpswfb63kt9

Villiers - The V Engine. 20150726_145525_zps9rah43hx

Anyone have any experience of this sort of repair? Any and all advice gratefully received.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by rich07961 Mon Jul 27 2015, 11:57

Hi paul,

Possibly have 2 ideas for you, the lister D has almost the same principal for holding needle in float and if one will fit the V
I'm sure someone on here would have a spare somewhere, the D float is 40cms across and 40cms from connection on needle to bottom,
image attached.

Villiers - The V Engine. Wp_00015

My other idea is to remove the old wire off the float, get a small paper clip as they are quite springy and make up something like image 1. I used wire as a guide,

Villiers - The V Engine. Wp_00016

Then solder to float as per image 2, I have marked where to solder but you may only need to solder each end, so I would try that first. if you have a dremmel you could grind flat the area of contact to needle or enough that it fits on needle, because the straight wire is overlapped it will push needle into slot on other wire, if this makes sense.

Villiers - The V Engine. Wp_00017
rich07961
rich07961
A credit to the forum
A credit to the forum

Posts : 287
Join date : 2015-03-30
Age : 72
Location : Calne Wilts

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Tue Jul 28 2015, 09:17

Cheers Richard. Will see what we can do.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Fri Feb 19 2016, 08:33

Made a start on the V engine. Now need to sort out the carbuetter float and splash out on a Taiwanese magneto coil.

Villiers - The V Engine. 20160217_142111_zps0oq7cqts

Villiers - The V Engine. 20160217_142002_zpslv7wit9x

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by rich07961 Fri Feb 19 2016, 15:48

Hi Paul,
They look nice in blue I was glad I painted mine blue but tried to keep to its original colour as I presume you are, looking good.

Regards Richard

_________________
Success is the ability to go from one failure to the next without any loss of enthusiasm  Very Happy
rich07961
rich07961
A credit to the forum
A credit to the forum

Posts : 287
Join date : 2015-03-30
Age : 72
Location : Calne Wilts

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Sat Oct 27 2018, 14:37

Nearly there. Just need to find someone to fabricate a fan cover.

Villiers - The V Engine. 20181010

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by B10Dave Thu Nov 01 2018, 02:32

Looking good. Can you cut out a fan cover from course screening or flat expanded metal?
B10Dave
B10Dave
Born to be wild
Born to be wild

Posts : 18
Join date : 2014-01-24
Age : 72
Location : Aylmer Ontario Canada

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Thu Nov 01 2018, 10:03

B10Dave wrote:Looking good. Can you cut out a fan cover from course screening or flat expanded metal?


From an 'elf & safety point that would do but I'd rather have something looking like the original.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Sun Jan 06 2019, 16:25

Got a fan ring so decided to do a bit of clean up on the MK40 at the same time. Pleased with the result

Villiers - The V Engine. 20190112


Tank will need a second soak.

Villiers - The V Engine. 20190111


I'm considering painting the fan ring with clear lacquer so it looks a bit different - or will I offend the purists?

Villiers - The V Engine. 20190110

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by dunitrong Sun Jan 06 2019, 22:56

That engine looks well as is. All my engines where wrecks / incomplete and I have to make parts for them.The Lister A I did this year had no tank sooo I made one. ( I will eventually get it to stop leaking)! Varnish it after all its your engine. Arthur

dunitrong
Expert
Expert

Posts : 71
Join date : 2014-05-29
Age : 79
Location : Pontefract

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Mon Jan 07 2019, 10:37

Cheers Arthur, or maybe black to match the tank straps?

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Robotstar5 Mon Jan 07 2019, 19:39

Woodsman wrote:Cheers Arthur, or maybe black to match the tank straps?

Gold leaf, you know you wan to Very Happy

Stuart.
Robotstar5
Robotstar5
Life Member
Life Member

Posts : 1077
Join date : 2018-09-25

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Robotstar5 Sun Jan 20 2019, 20:12

Could you post a photo showing the carb please, I've just got one and never seen a carb like the one fitted.

Stuart.
Robotstar5
Robotstar5
Life Member
Life Member

Posts : 1077
Join date : 2018-09-25

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Fri Jan 25 2019, 16:24

Villiers - The V Engine. Vcarb10

As discussed elsewhere WWII spec Amal

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Sun Feb 03 2019, 16:03

Decided to go for blue in the end...

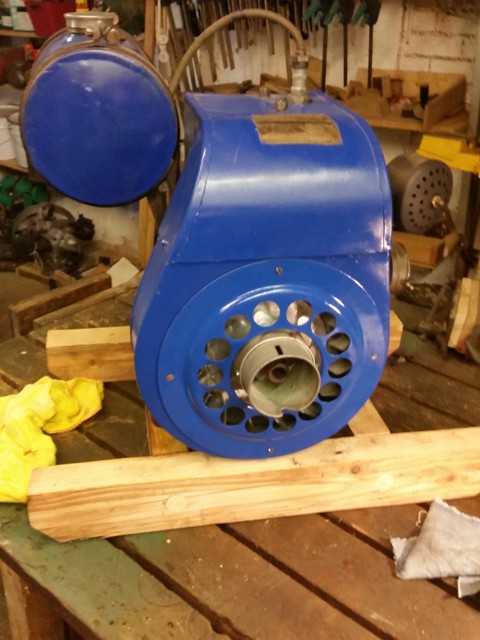

Villiers - The V Engine. 20190210

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Fri Feb 08 2019, 14:55

Following close examination of my V engine re Stuarts project,  I have now noticed that - having stripped, cleaned, fettled, polished, painted and reassembled - I neglected to re-install the kill switch so it will have to come apart again !!
Dur! Embarassed

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Robotstar5 Fri Feb 08 2019, 21:33

I didn't even know there was a kill switch, is it on the mag backplate?

Stuart.
Robotstar5
Robotstar5
Life Member
Life Member

Posts : 1077
Join date : 2018-09-25

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Sat Feb 09 2019, 12:29

See first photo' in this thread.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Mon Feb 25 2019, 16:34

Kill switch now re-installed.
Had to remove backplate, so had to remove tin work and then flywheel which put the timing out so head off to get TDC - what a faff !

Villiers - The V Engine. 20190214

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Robotstar5 Mon Feb 25 2019, 16:56

Note to self: remember to install kill switch when rebuilding my V engine Wink

Stuart.
Robotstar5
Robotstar5
Life Member
Life Member

Posts : 1077
Join date : 2018-09-25

Back to top Go down

Villiers - The V Engine. Empty The V engine

Post by chiefy Tue Feb 26 2019, 11:53

Robotstar5 wrote:I didn't even know there was a kill switch, is it on the mag backplate?

Stuart.

Hi Stuart,
The kill switch can be on the back plate or on the top of the tin ware this was a strip of spring steel fastened to the top the loose end was positioned over the top of the plug depress the strip onto the top of the plug and this shorts out to earth crude but very effective.
Regards,
Chiefy.

chiefy
A credit to the forum
A credit to the forum

Posts : 264
Join date : 2013-08-21
Age : 86
Location : near huddersfield

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Woodsman Mon Aug 12 2019, 09:38

Finally got around to plumbing in the fuel pipe so now ready to go to market - need funds to work on latest acquisitions.

Villiers - The V Engine. 20190819

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.
Woodsman
Woodsman
Admin

Posts : 2655
Join date : 2014-08-24
Age : 72
Location : God's own county

Back to top Go down

Villiers - The V Engine. Empty Re: Villiers - The V Engine.

Post by Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
